Why Granite Platform Brackets Improve Accuracy in Measuring Systems

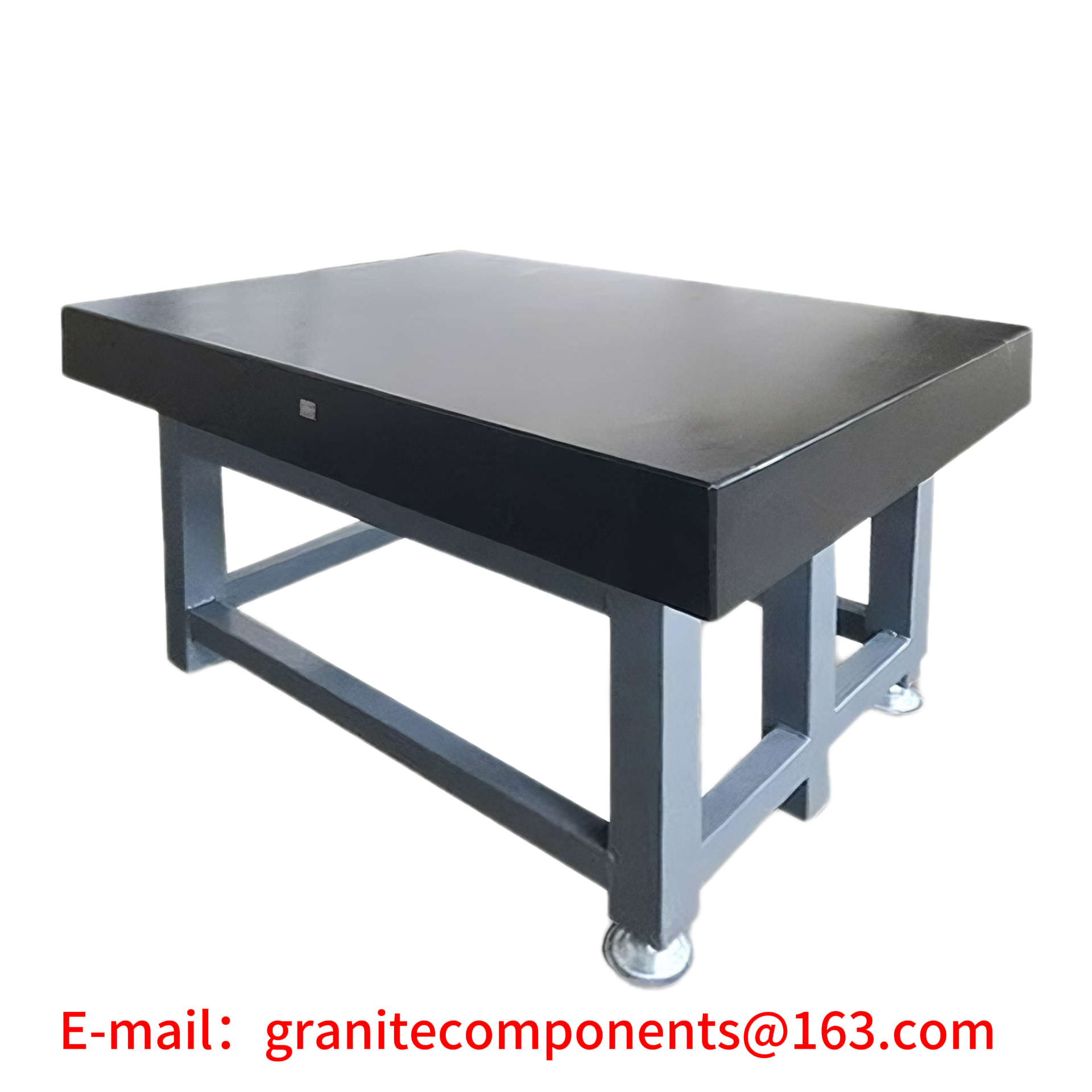

In the world of precision metrology, significant investment and engineering focus are often directed toward the measuring instruments themselves—the probes, sensors, and software. However, the entire measurement chain is only as strong as its most vulnerable link. A precision granite measuring platform, capable of maintaining micron-level flatness, can have its accuracy completely negated if it is mounted on inadequate or unstable supports. These substructures are not merely passive stands; they are integral components of the measurement system.

The Bracket's Role: The Overlooked Source of Inaccuracy

Unsuitable platform brackets act as a frequently overlooked source of inaccuracy by introducing micro-scale deformation and transmitting environmental vibrations directly into the measuring platform, thereby undermining its inherent precision.

The most direct way a poor-quality bracket compromises accuracy is through elastic deformation under load. A granite measuring platform, along with the parts and instruments placed upon it, can be exceptionally heavy. If the supporting brackets lack sufficient rigidity, they will deflect minutely under this weight. This deflection translates into a slight but critical bending of the entire granite surface plate. Since the plate's surface is the primary datum for all measurements, this bending introduces errors in flatness and parallelism that are directly transferred to every measurement taken, rendering the certified accuracy of the plate itself irrelevant.

Beyond static deflection, inadequate brackets are efficient conduits for vibration. Workshop environments are filled with low-frequency vibrations from machinery, foot traffic, and HVAC systems. A structurally weak or resonant bracket will transmit these vibrations directly into the granite measuring platform. While the granite has excellent inherent damping properties, a constant input of vibrational energy can overcome this capacity, causing the surface to exhibit microscopic oscillations. This leads to "noisy" or non-repeatable measurement readings from probes and vision systems, increasing measurement uncertainty and making it difficult to distinguish between actual part features and environmental interference.

Furthermore, brackets made from materials with a different coefficient of thermal expansion than granite create a hidden source of stress. As the ambient temperature fluctuates throughout the day, the brackets and the platform expand and contract at different rates. This differential movement can warp the platform, inducing temporary but significant flatness errors. This thermal influence is often insidious because it occurs gradually and can be difficult to trace, leading to inconsistent measurement results that vary with the time of day or changes in the factory environment.

The Four Key Advantages of Granite Platform Brackets

Granite platform brackets provide four fundamental advantages that preserve measurement accuracy: material consistency with the platform for thermal stability, exceptional rigidity to prevent deflection, integrated vibration damping, and compatibility with precision leveling systems.

The first and most significant advantage is material consistency. A granite platform bracket manufactured from the same material as the granite measuring platform itself ensures identical thermal properties. This means both the platform and its supports expand and contract at the same rate in response to temperature changes. This eliminates thermally induced stresses that can warp the platform over time or with daily temperature cycles. The system behaves as a single, homogeneous unit, maintaining its geometric integrity and ensuring that measurements are consistent regardless of minor environmental temperature variations.

The second advantage is superior rigidity. Granite has an exceptionally high modulus of elasticity, meaning it is extremely stiff and resistant to bending. When engineered into a bracket designed with a robust cross-section, it provides an unyielding support that prevents any detectable sagging or deflection, even under the full load capacity of the platform. This ensures that the certified flatness of the granite measuring platform is preserved in its working state, as the brackets provide a foundation that is, for all practical purposes, immovable. This static stability is the bedrock upon which repeatable measurements are built.

The third and fourth advantages concern dynamic stability and setup. Granite's natural crystalline structure provides excellent vibration damping. A granite platform bracket acts as an extension of the platform's own damping system, absorbing and dissipating vibrational energy before it can reach the measurement surface. This creates a comprehensive "quiet zone" from the floor up. Finally, these brackets are designed to interface seamlessly with precision leveling mechanisms. This allows installers to make fine, stable adjustments to achieve perfect platform leveling, which is crucial for many measurement routines and for ensuring that the platform's weight is distributed evenly across all supports to prevent internal stress.

Practical Application Scenarios

The application of granite platform brackets is critical in scenarios demanding the highest levels of metrological integrity, most notably in supporting coordinate measuring machines and serving as the foundation for high-precision inspection fixtures.

The most prominent application for granite platform brackets is in the installation of Coordinate Measuring Machines (CMMs). A CMM's bridge moves at high speeds and accelerations, generating significant dynamic forces. Any flexibility or resonance in the support structure would allow the machine's frame to twist or vibrate during measurement cycles, introducing errors that are impossible to compensate for software. Granite brackets provide the massive, rigid, and damped foundation required to keep the entire CMM structure stable. This ensures that the measured coordinates reflect the true geometry of the part being inspected and not the dynamic behavior of the machine's foundation.

Beyond CMMs, granite platform brackets are essential for creating dedicated inspection stations and tooling bases. In high-volume manufacturing, custom fixtures are often built to hold parts in a precise orientation for automated measurement. These fixtures must remain dimensionally stable over time. Mounting such a fixture on a granite measuring platform that is, in turn, supported by granite platform brackets creates a complete and stable measurement ecosystem. This setup guarantees that the relationship between the part, the fixture, and the measuring sensor remains constant, batch after batch, which is vital for statistical process control.

The use of these brackets also extends to mitigating challenging environmental conditions. In facilities where floor vibrations are a known issue, the combination of a heavy granite platform and matching brackets increases the total mass of the system, lowering its natural frequency and making it less susceptible to common floor-borne vibrations. For metrology labs located in multi-story buildings or near production machinery, this systemic approach to stability—where the bracket is a key component—is often the most effective and space-efficient solution for achieving the required level of measurement precision.

Conclusion

Achieving true precision in measurement is a holistic endeavor that requires every component of the system to contribute to the goal of stability. The granite platform bracket is not an accessory but a fundamental enabler of accuracy. By ensuring material harmony, providing unyielding support, extending vibration damping, and enabling precise leveling, these specialized brackets protect the integrity of the granite measuring platform they support.

Investing in high-quality granite platform brackets is therefore not an additional cost but a critical step in safeguarding a much larger investment in precision metrology equipment. It is the definitive assurance that the inherent accuracy of your measuring platform is fully realized in practice, delivering reliable, repeatable, and trustworthy data that drives quality and innovation.
